Description

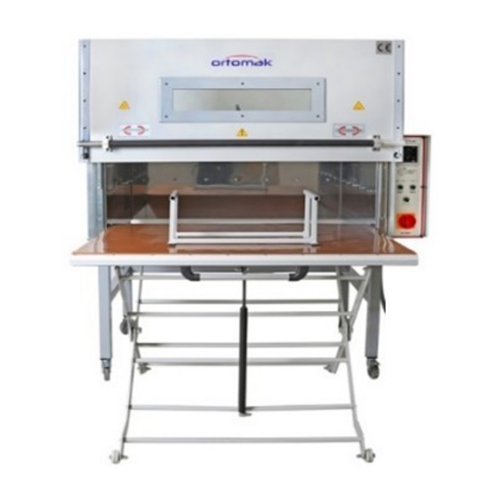

INFRARED OVEN IN. 7000
| Technical Data | Descriptions |
| Product Code | IN.7000 |
| Dimension : W.D.H | Ohter : 1600 * D.1150 *1500 mm -- İnner : 1250 * 1000 * 500 mm Height : With Open Door 1850 mm |
| Roll-about tray | Independent, 4 locking Casters lift adjustment - locks at any height, Single-hand |
| Material: | Inside Stainless steel, Outside Painted Normal Sheet |
| Electrical V-HZ-KW | 230-400 V/ 50-60 Hz/ 7,700 KW With Three Phasic Power Option |
| Active Elements | 6 pcs Infrared-Quartz-tubes with reflector Dual zone switching |
| Heating area | W 1100 x D 950 mm |
| To be used for: | Heating theroplastic plastic materials (PP, PE, PU and equivalent) in a vacuum forming frame or on a sheet with Teflon lining |
| Temperature Control | Opto-electronic AIR-measuring unit, Measuring of Control the Material´s surface temperature! Digital Temparature Control Device ,K Type Sensor 0 – 250 C |
| Material Cart | Mobile with 4 locking casters Table Size : 1240 * 990 mm |
| Safety and usage information | Updated Manual for safety and usages |
| Door mechanism | Space saving vertical movement, gas shock (2x) Assisted, ball bearing guided, viewing window |
| Illumination | Lamp 2 x 30 watts |
| Material Table Surface | Teflon 0.25 mm |
| Process Completed | Sound and red warning lamp |
| Spare parts with the product | Blister-Forming – Teflon + Infrared Tubes 6 Pcs |
