  • DUCT EXRACTİON TT.2500

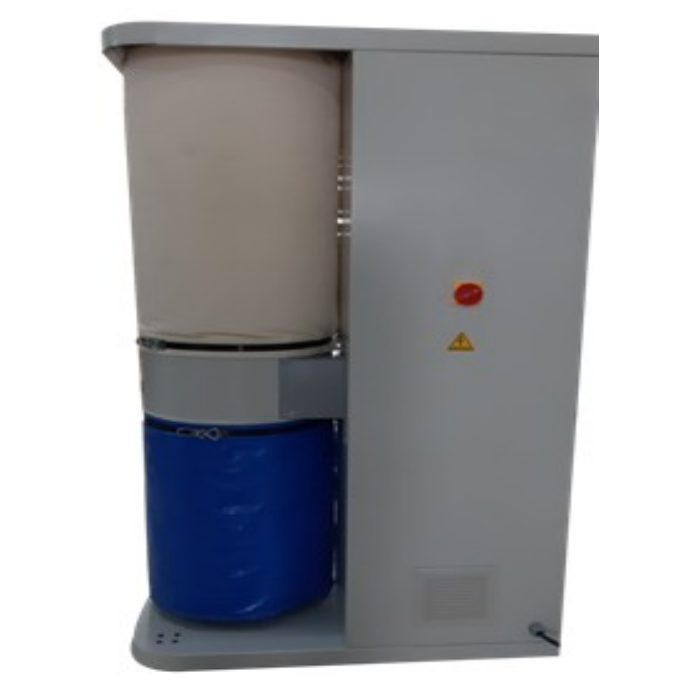

Mobile dust collector, designed to capture, transport and separate dry materials such as wood and plastic dust and shavings. This dust collector is suitable for the connection of one machine. Vacuum resistant housing, antistatic filter element with vibration dedustingfan with single phase motor of energ, integrated muffler, air outlet grid, 4 caster
* Newest Technology Used
* Designed for Protes Orthosis Workshops.
* Easy Operation
* High Capacity
* Mobile Desing
* Designed to capture, transport and separate dry
materials such as wood and plastic dust and shavings.
* Speed 3000RPM
* Dust Suction Apparatus Hose 100 mm
* Does not leak dust
* Washable Dust Bag
* Right and Left Hose Connection Point

Category:

Description

DUCT EXRACTİON TT.2500

Technical Data Descriptions
Code TT.2500
Dimension : Out Side W.50—D.80—H.125 cm
Power Supply 220 Volt 50 Hz
Power cord With CEE plug 3 × 16 A and CEE socket 3× 16 A
Exhaust connection piece Ø (nominal diameter) 100 mm
Nominal volume flow 1000 m³/h
Filter surface area 2,50 m2
Filter material Category C, BIA Certificate, Electrically Conductive, Washable
Max. sound intensity level 95 dB (A)
Dust collection volume 150 LT
Power requirements 220 volt 50Hz, 1100 Watt
Color Rall 7035 & 7045
